Due to hot weather today, it was a joy to work outside at the balcony.
Here the results, all the antenna's are connected via a 5-pole antenna-coupler
to the wonderful YAESU FRG-100
- PS: click a picture to enlarge it -
- PS: click a picture to enlarge it -
an Isyline-DX antenna is 100 m copperwire in
a plastic pipe - strong signals up to S9+60 db
active Magnetic-Loop Antenna 25 meter high
The Magnetic Loop is a product of PETER PRASSE
View from the left side
the Loop is based on a ROTOR for to change
the direction
Connection to the Control Unit

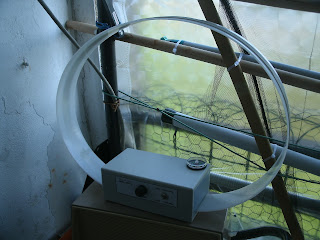

additional mediumwave Frame Antenna
- special made by ADDX in round option
all photos made by H.B.
RESULT of todays work: the FRG-100 have now
1) Isyline 100 meter copperwire antenna
2) the rotable PRASSE Magnetic-Loop outdoor
3) Frame antenna for mediumwave only
4) 2 x 12 m Dipol (via Balun) thru the balcony
5) indoor passive tunable Loop-Antenna
6) PALSTAR active Ferrit-Antenna
Now it shall possible to listen to every little TX in the deepest far away Asia !!
73, SWL-DE9KPP
